Controllers with display

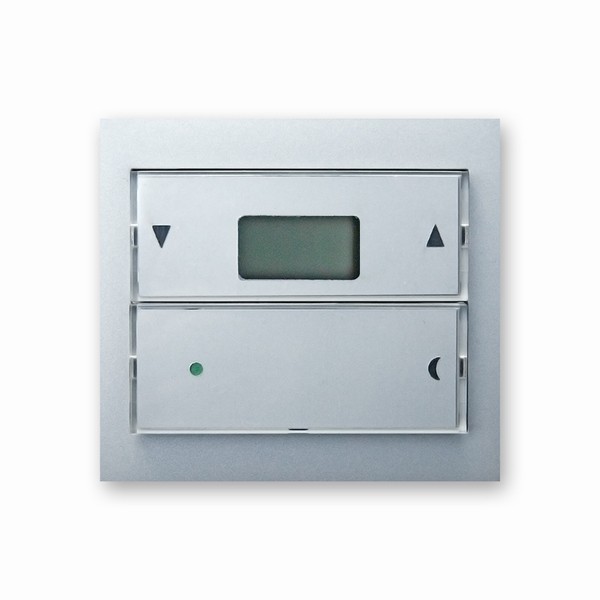

Controllers with 3 digit LCD into the installation frame - type AMD
Funktion
- room temperature measurement
- temperature correction
- communication over RS485 line
- protocol ModBus RTU
Produced designs: ABB, Legrand, Moeller, Schneider Electric, Vimar, BTicino, Efapel, Gira, Jung, …
Software configuration: we recommend the converter USB to RS485
Leaflead Tango-alpha nea (PDF)
Leaflead Time-element (PDF)
Leaflead Group (PDF)
Leaflead Berker (PDF)
On wall controllers - type SMD
- setpoint adjustment by turn-knob
- attenuation mode
- communication over RS485 line, protocol ModBus RTU
Software configuration: we recommend the converter USB to RS485
Leaflead (PDF)
Description of communication (PDF)
