Frequency or PWM transmitters

Frequency or PWM transmitters

  • output 1 Hz ÷ 20 kHz (transmitter RF1)
  • output PWM (transmitter RW1)
  • input 1 Hz ÷ 20 kHz (transmitter RV-2F)

Transmitter with frequency output - type RF1

  • input -  Pt100, Pt1000, Ni1000, 0 ÷ 100Ω, 0 ÷ 1000Ω, 0 ÷ 5V, 0 ÷ 10V
  • frequency output 1 Hz to 20kHz
  • RS 485 line, protocol ModBus RTU
  • configuration using PC (the MBSet program)

Leaflead (PDF)

Transmitters with frequency output

Double-channels Transmitter

  • inputs -  fully configurable in range 1Hz ÷ 20 kHz
  • outputs - fully configurable in range 0 ÷ 10V or 0 ÷ 20mA
  • SW configuration to USB mini port (program USB_SET)

Leaflead (PDF)

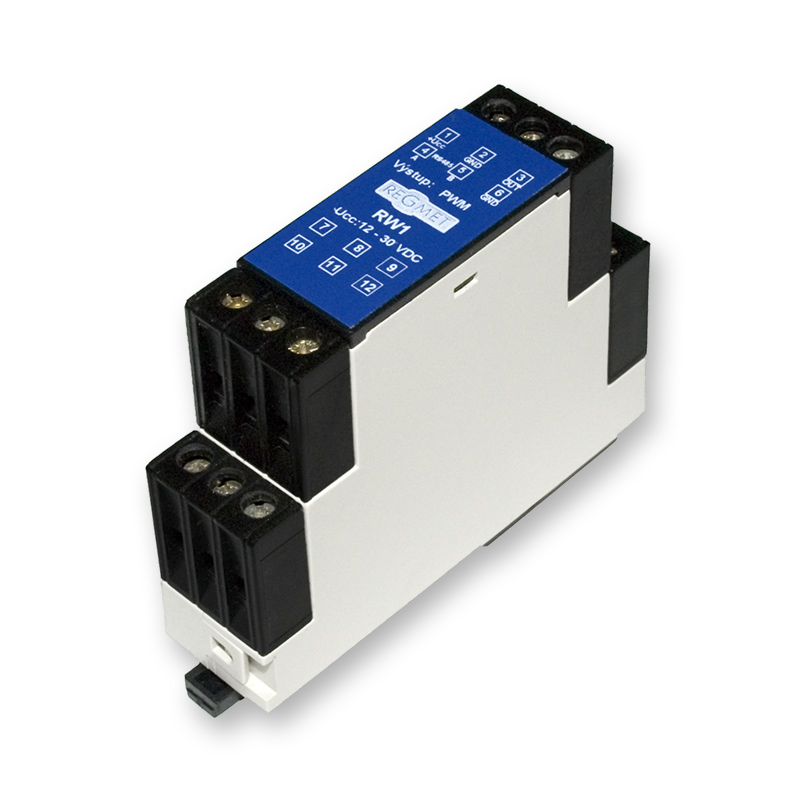

Transmitter with PWM output - type RW1

  • inputs: Pt100, Pt1000, Ni1000, 0÷100Ω, 0÷1000Ω, 0÷5V, 0÷10V, 0÷20mA, 4÷20mA
  • RS 485 line, protocol ModBus RTU
  • SW configuration of PWM output

Leaflead (PDF)

REGMET s.r.o. - development, manufacture and sale of components for the measuring and control technology

We offer:

  • temperature, humidity, flooding and pressure sensors
  • industrial electronic thermostats
  • interior controllers and thermostats
  • transmitters and other devices suitable for air conditioning, heating control systems, energy, homebuilding, etc.

We produce temperature sensors which are fully compatible with control systems of following company: TECO, SIEMENS, SAUTER, SAIA, LANDIS & GYR, JOHNSON CONTROLS, TREND CONTROLS, AMIT, STAEFA CONTROLS etc.
